Updating Firmware on a ZXP Series 7

Keeping your ID card printer’s firmware up to date can help you prevent problems with printing.

To begin updating the firmware on your Zebra ZXP Series 7 ID card printer, you’ll need to download the latest firmware from the Zebra website at http://www.zebra.com/us/en/support-downloads/card/zxp-series-7.html and save it to your computer.

How to Update Firmware

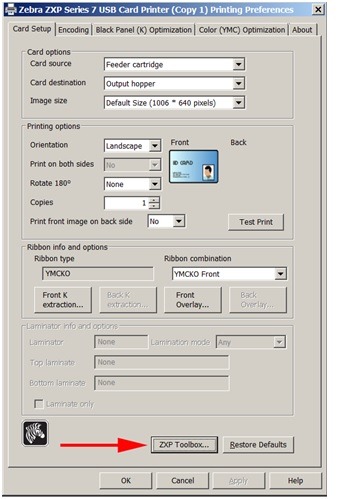

• Go to your computer’s Devices and Printers folder. Right click on the Zebra ZXP Series 7 USB Card Printer, and choose Printing Preferences. Click on the ZXP Toolbox.

ZXP7 Firmware 1

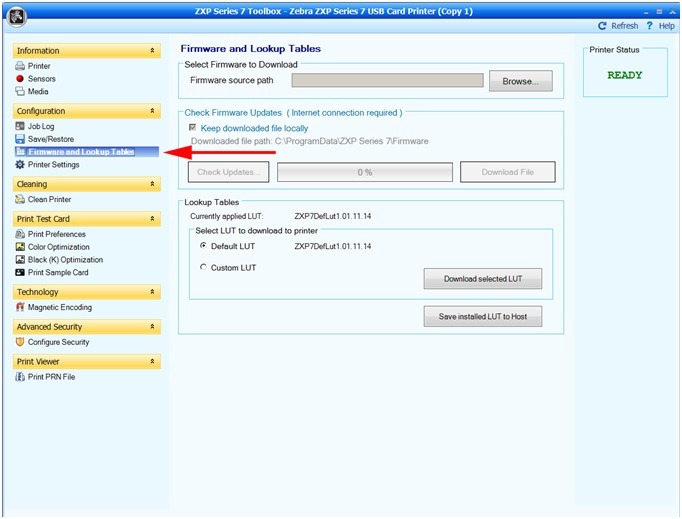

• Click on Firmware and Lookup Tables in the lefthand menu.

ZXP7 Firmware 2

• Click on Browse, and navigate to the firmware file you downloaded from the Zebra website.

ZXP7 Firmware 3

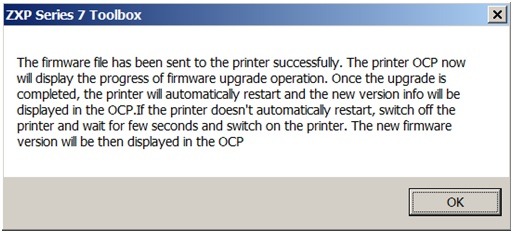

• The following message will be displayed. Click OK. The firmware upgrade will take several minutes to complete. Cycle the printer power.

ZXP7 Firmware 4
